Drag Chain Cables
for constant bending, twisting (torsion) and high-speed motion without breaking.
. Outer jacket: PVC
. Shielding: Non-shielded
. Temperature (mobile): -10°C to +70°C
. Bending cycles: 5 million cycles
. Nominal voltage: 300/500V
. Outer jacket: PVC
. Shielding: Shielded
. Temperature (mobile): -10°C to +70°C
. Bending cycles: 5 million cycles
. Nominal voltage: 300/500V

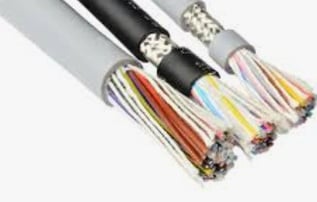

Flex Drag Chain Cables - 300/500V
. Outer jacket: PVC
. Shielding: Non-shielded
. Temperature (mobile): -10°C to +70°C
. Bending cycles: 5 million cycles
. Nominal voltage: 300/500V
. Outer jacket: PVC
. Shielding: Shielded
. Temperature (mobile): -10°C to +70°C
. Bending cycles: 5 million cycles
. Nominal voltage: 300/500V
BTA.101 PVC + Non-shielded
BTA.102 PVC + Shielded

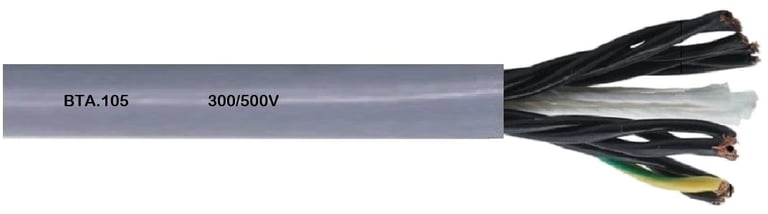

BTA.105 PVC + Non-shielded

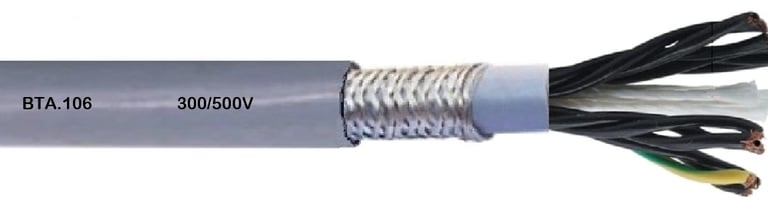

BTA.106 PVC + Shielded
. Outer jacket: PVC
. Shielding: Non-shielded
. Temperature (mobile): -10°C to +70°C
. Bending cycles: 10 million cycles
. Nominal voltage: 300/500V
. Outer jacket: PVC
. Shielding: Shielded
. Temperature (mobile): -10°C to +70°C
. Bending cycles: 10 million cycles
. Nominal voltage: 300/500V
. Outer jacket: PUR
. Shielding: Non-shielded
. Temperature (mobile): -35°C to +80°C
. Bending cycles: 10 million cycles
. Nominal voltage: 300/500V
. Outer jacket: PUR
. Shielding: Shielded
. Temperature (mobile): -35°C to +80°C
. Bending cycles: 10 million cycles
. Nominal voltage: 300/500V
. Outer jacket: TPE
. Shielding: Non-shielded
. Temperature (mobile): -40°C to +90°C
. Bending cycles: 10 million cycles
. Nominal voltage: 300/500V
. Outer jacket: TPE
. Shielding: Shielded
. Temperature (mobile): -40°C to +90°C
. Bending cycles: 10 million cycles
. Nominal voltage: 300/500V

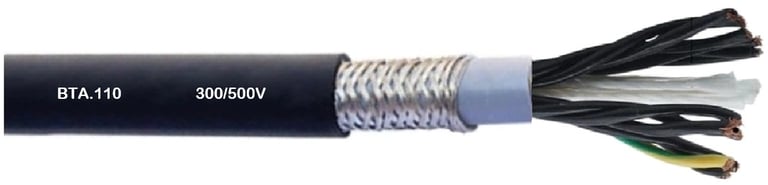

BTA.110 PVC + Shielded

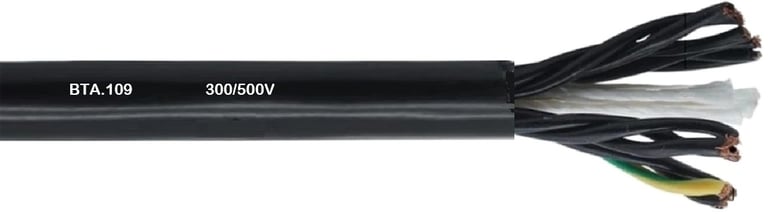

BTA.109 PVC + Non-shielded

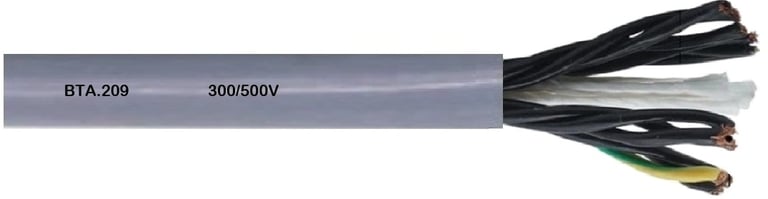

BTA.209 PUR + Non-shielded

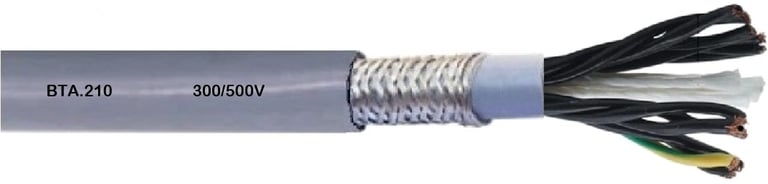

BTA.210 PUR + Shielded

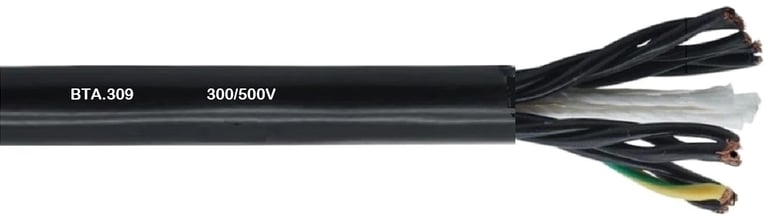

BTA.309 TPE + Non-shielded

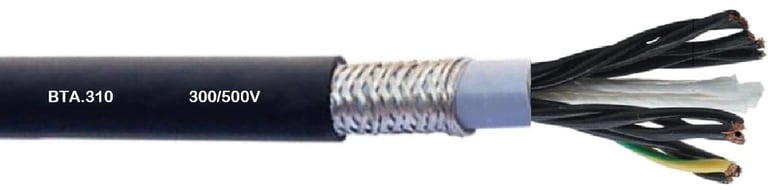

BTA.310 TPE + Shielded

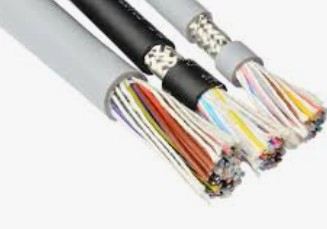

Hi-Flex Drag Chain Cables - 300/500V

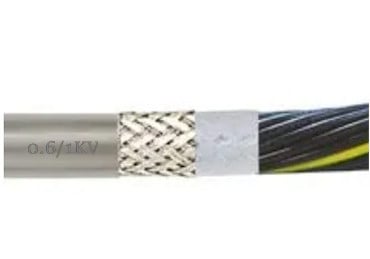

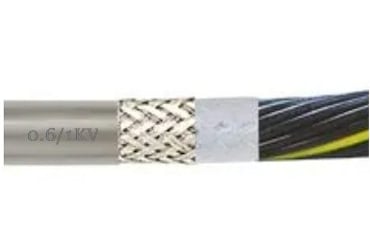

Hi-Flex Drag Chain Cables - 600/1000V
BTA.185 PVC + Non-shielded
BTA.186 PVC + Shielded
. Outer jacket: PVC
. Shielding: Non-shielded
. Temperature (mobile): -10°C to +70°C
. Bending cycles: 10 million cycles
. Nominal voltage: 600/1000V
. Outer jacket: PVC
. Shielding: Shielded
. Temperature (mobile): -10°C to +70°C
. Bending cycles: 10 million cycles
. Nominal voltage: 600/1000V
BTA.285 PUR + Non-shielded
BTA.286 PUR + Shielded
. Outer jacket: PUR
. Shielding: Non-shielded
. Temperature (mobile): -35°C to +80°C
. Bending cycles: 10 million cycles
. Nominal voltage: 600/1000V
. Outer jacket: PUR
. Shielding: Shielded
. Temperature (mobile): -35°C to +80°C
. Bending cycles: 10 million cycles
. Nominal voltage: 600/1000V
BTA.385 TPE + Non-shielded
BTA.386 TPE + Shielded
. Outer jacket: TPE
. Shielding: Non-shielded
. Temperature (mobile): -40°C to +90°C
. Bending cycles: 10 million cycles
. Nominal voltage: 600/1000V
. Outer jacket: TPE
. Shielding: Shielded
. Temperature (mobile): -40°C to +90°C
. Bending cycles: 10 million cycles
. Nominal voltage: 600/1000V

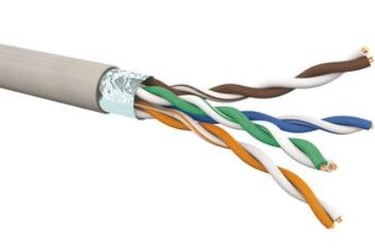

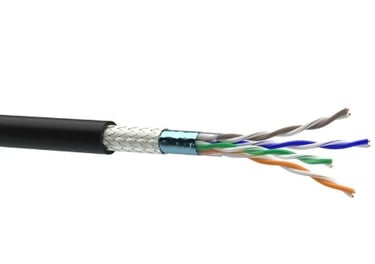

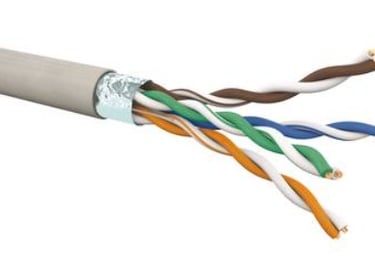

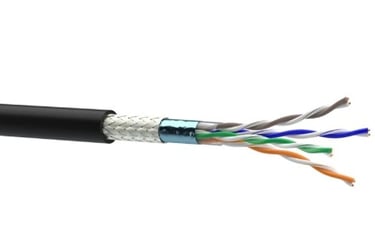

Drag Chain - Data Cables
BTA.122 PVC + Shielded
BTA.222 PUR + Shielded
BTA.126 PVC + Shielded
BTA.226 PUR + Shielded
. Outer jacket: PVC
. Shielding: Shielded
. Temperature (mobile): -10°C to +70°C
. Bending cycles: 10 million cycles
. Nominal voltage: 300/300V
. Outer jacket: PUR
. Shielding: Shielded
. Temperature (mobile): -35°C to +80°C
. Bending cycles: 10 million cycles
. Nominal voltage: 300/300V
. Outer jacket: PUR
. Shielding: Shielded
. Temperature (mobile): -10°C to +70°C
. Bending cycles: 10 million cycles
. Nominal voltage: 300/300V
. Outer jacket: PUR
. Shielding: Shielded
. Temperature (mobile): -35°C to +80°C
. Bending cycles: 10 million cycles
. Nominal voltage: 300/300V

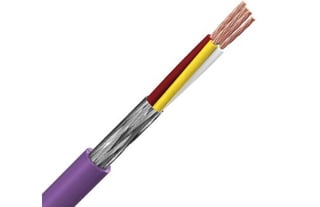

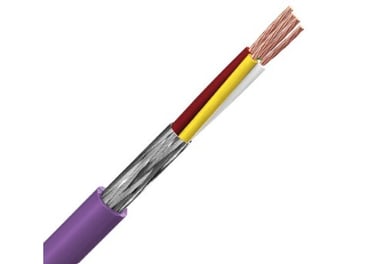

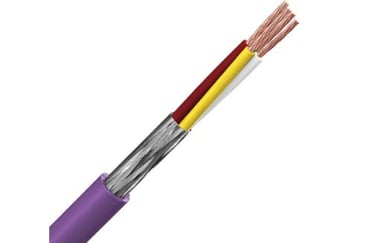

Drag Chain - Bus Cables
BTA.130 PVC + Shielded
BTA.230 PUR + Shielded
. Outer jacket: PVC
. Shielding: Shielded
. Temperature (mobile): -10°C to +70°C
. Bending cycles: 10 million cycles
. Nominal voltage: 300V
. Outer jacket: PUR
. Shielding: Shielded
. Temperature (mobile): -30°C to +70°C
. Bending cycles: 10 million cycles
. Nominal voltage: 300V

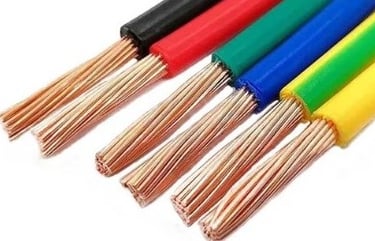

High Temperature Cables

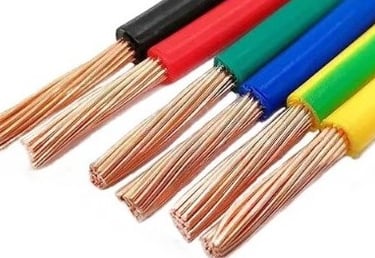

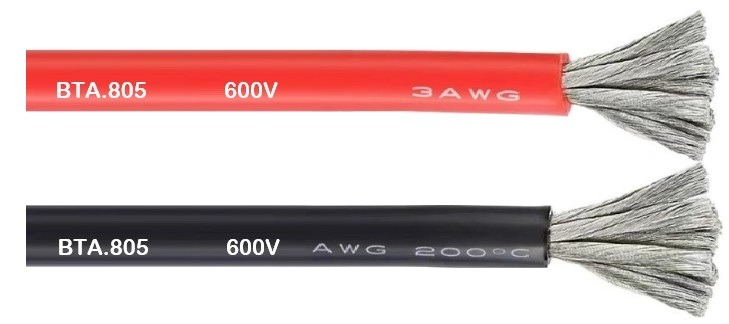

BTA.805 Silicone + Non-shielded
. Outer jacket: Silicone
. Shielding: Non-shielded
. Cores: Single-core
. Temperature (mobile): -60°C to +200°C
. Nominal voltage: 600V
____________________

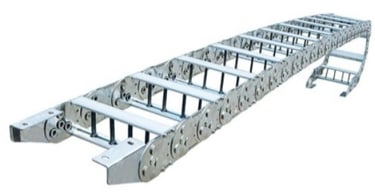

Mini Drag Chains
Drag Chains
are protective guide used to surround cables and hydraulic or pneumatic hoses on moving automated machinery to protect them from harsh environments.
Economical Drag Chains
Enchanced Drag Chains

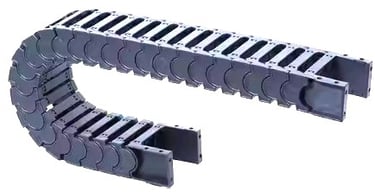

Low-Noise Drag Chains

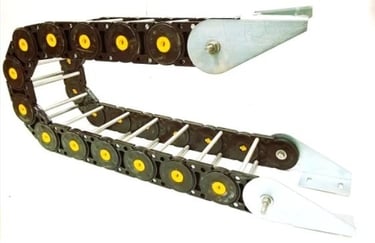

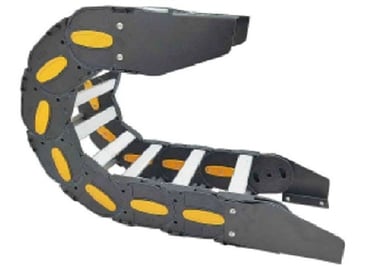

Aluminum + Plastic Drag Chains

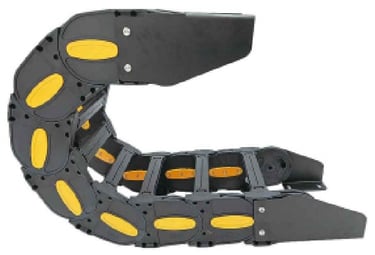

Black Plastic Drag Chains
. Inner height: 5, 7 & 10mm
. Inner width: 5mm to 40mm
. Bending Radius: 10mm to 38mm
. Bridge type
. Bracket + Separator
. Inner height: 15, 18 & 25mm
. Inner width: 15mm to 103mm
. Bending Radius: 28mm to 150mm
. Bridge type
. Bracket + Separator
. Inner height: 25, 30, 35, 45, 55, 65 & 80mm
. Inner width: 25mm to 350mm
. Bending Radius: 55mm to 600mm
. Bridge or Enclosed type
. Bracket + Separator
. Inner height: 10, 18, 25, 35, 42 & 52mm
. Inner width: 18mm to 150mm
. Bending Radius: 28mm to 150mm
. Bridge type
. Bracket + Separator
. Inner height: 25, 35, 45, 55, 65, 85 100mm
. Inner width: 26mm to 350mm
. Bending Radius: 45mm to 600mm
. Bridge type
. Bracket + Separator
